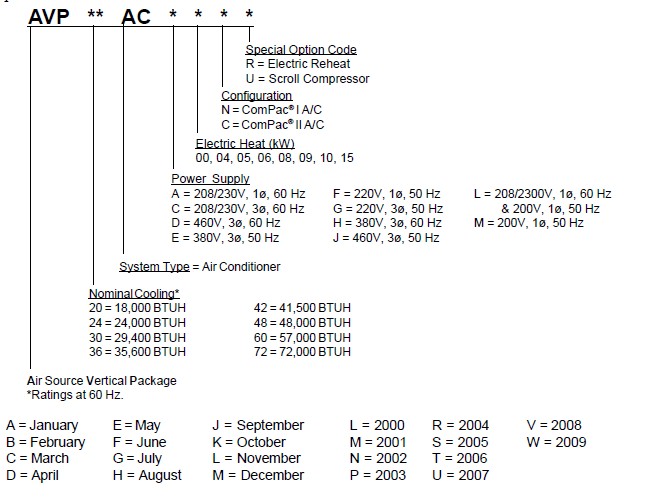

The model identification number is found on the data sticker. Rating plate located on sidepanel.
![](/images/image/20140416115089008900.jpg)
SPECIFICATIONS
Table 1. CFM @ External Static Pressure (Wet Coil) (IWG)
Table 2. Ship Weight
Table 3. Filter Size
* Two filters required.
MODEL 0.10 0.20 0.25 0.30 0.40 0.50
20 860 810 740 670
24 860 810 740 670
30 1100 1000 960 920 810
36 1310 1220 1185 1150 1060
42 1650 1585 1520 1450 1360
48 1900 1830 1760 1700 1620
60 1900 1830 1760 1700 1620
72 2100 1950 1800 1730 1660
20/24 30/36 42 48 60 72
MODEL LBS/KG LBS/KG LBS/KG LBS/KG LBS/KG LBS/KG
COMPAC® I A/C 274/125 355/160 495/225 521/240 535/245 600/272
COMPAC® II A/C 286/130 365/170 527/240 552/250 565/260 640/290
MODEL 20/24 30/36 42/48/60 72
FILTER SIZE (inches) 16 x 25 x 2 16 x 30 x 2 22 x 36-1/2 x 2 18 x 24 x 2*
FILTER SIZE (mm) 406 x 635 x 51 406 x 762 x 51 559 x 927 x 51 452 x 610 x 51
