ESP power cable
- Brand:
- Type:

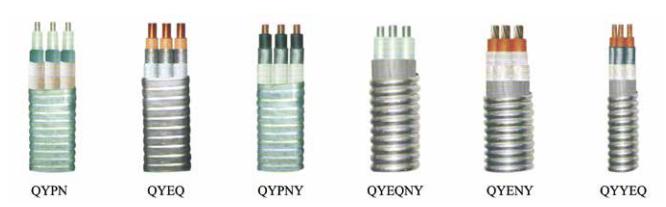

ESP power cable is divided into round cable and flat cable. The cable consists of conductor（solid、 stranded 、 compact-stranded) , insulation layer(PP、EPDM、PI）, jacket（Nitrile and EPDM) and cable armor. According to the different requirements of power and different conditions of oil well, there are different specifications of cable. Temperature rating: 90℃（194 ℉）,120℃（248 ℉）,150℃（302 ℉）,205℃（400 ℉） Voltage range : 3KV、4KV、5KV、 6KV. Usually, we use the galvanized steel armor, stainless steel armor and Monel armor for corrosive medium to prevent the cable from being damaged.All of the products are products are provided and tested in line with national standards of GB/T16750,IEEE and API Recommended Practice.
|
Model
|
Working Temperature ℃ |
Voltage KV |
Cross section mm² |
AWG
|
|
|
The lowest |
The highest
|
||||
|
QYPN |
-30 |
90 |
3KV 4KV 5 KV 6KV |
42 33 20 16 13 10 8 |
1# 2# 4# 5# 6# 7# 8#
|
|
QYPQ |
-30 |
90 |
|||
|
QYEN |
-40 |
150 |
|||
|
QYEE |
-40 |
150 |
|||
|
QYEQ |
-40 |
150 |
|||
|
QYYEQ |
-40 |
205 |
|||
|
QYPNY |
-40 |
90 |
|||
|
QYENY |
-40 |
150 |
|||
|
QYEEY |
-40 |
150 |
|||
|
QYYEQEY |
-40 |
205 |
|||
