Motor Lead Extension (MLE )
- Brand:
- Type:
There motor lead extension is used to link the power cable and the motor.There are different temperature grades ,
for example 120℃，204℃，232℃，260℃ .We provide galvanized steel armor,stainless steel armor or monel armor

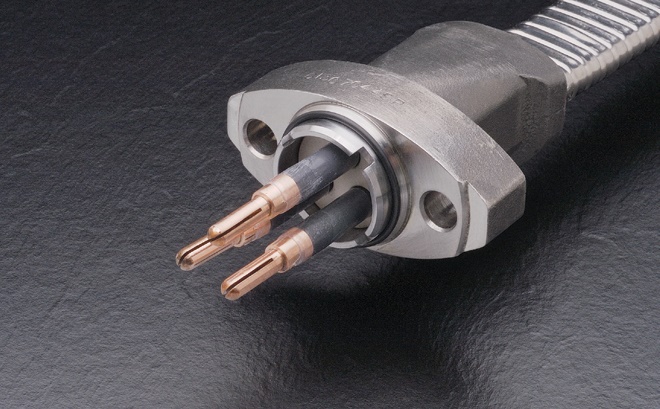

for corrosive medium . The MLE pothead is a key part to connect the motor with the power cable.The pothead
types include 114,116,138,and are compatible with Reda 375,456,540,562 and Centrilift series ,etc.
|
型号 Model |
线规 (AWG) |
导体截面积 Cross Section (mm²) |
导体根数 / 直径 Number /Diameter (n/D) |
耐温等级 Temperature (℃ ) |
额定电压 Rated Voltage (KV) |
|
QYJYEQ |
4# |
20 |
1/5.19 |
120 204 232 260 |
3 6 |
|
5# |
16 |
1/4.62 |
|||
|
6# |
13 |
1/4.12 |
|||
|
7# |
10 |
1/3.16 |
|||
|
QYJYF2F |
4# |
20 |
1/5.19 |
||
|
5# |
16 |
1/4.62 |
|||
|
6# |
13 |
1/4.12 |
|||
|
7# |
10 |
1/3.16 |
